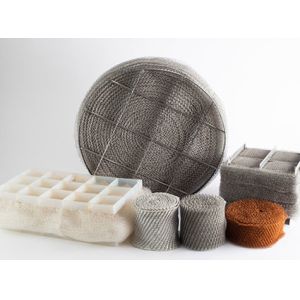

Monel Nickle Wire Mesh Mist Eliminator For Liquid Filter
Product introduction
A demister has the function of removing the excess water vapor before the steam is fed into the turbine. A demister is typically a cylindrical tube with steel gratings installed inside to eliminate the water droplets brought by steam from the geothermal well.
Product Specification
Product Features | |
PRODUCT | Gas Liquid Demister Filter |
Material: | AISI304, AISI316Stainless steel wire etc.brass wrie,fiber wire |
Mesh | 2mesh up to 400mesh(mesh: No.of hole in one inch) |
Woven type | Plain weave, knitted weave |
Width of Stainless Steel Mesh | 0.5m to 1.2m and 1.2m-4.0m, special width can produce as customer's
requirement. |
Length | standard length is 30m per roll, special length can produce as
customer's requirement. |
Diameter: | 0.01-1.8mm |
Package of Stainless Steel Mesh Screen: | Waterproof papaer/plastic bag/carton. |
Product Feature
Material:stainless steel 304,304L,316,316L,317,310S,321,304M,434, brass, copper, monel, nickel, tiatnium, 1Cr18Ni9Ti, Cr20Ni80, Cr20Ni50, galvanized, low carbon iron.Wire diameter: 0.1-0.55mm flat wire or round wire. Most common: 0.20mm-0.25mm.
Hole Sizes: 4mm×3mm 5mm×6mm 2mmx4mm, 4mmx5mm etc.
Hole shape: irregular
Width: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500 mm, 600mm, etc.
Length: 30-200m, customized size is available.
Thickness: 0.12mm-2.5mm, customized size is available
Craft: through layered, spiral wound or compressed, produces a tortuous path for highly effective particle capture.
Surface: flat-type and corrugated type
