0.6mm Excellent Mechanical Properties For Purification And Filtration Sintered Metal Filter

Sintered Filter Mesh Overview

Sintered wire mesh is made from multiple layers of woven wire mesh panels together using a sintering process. This process combines heat and pressure to permanently bond multi-layers of mesh together. The same physical process used to fuse individual wires together within a layer of wire mesh is also be used to fuse adjacent layers of mesh together. This creates a unique material offering excellent mechanical properties. It is an ideal material for purification and filtration. It may be from 5, 6 or 7 layers of wire mesh (5 layers sintered filter mesh structure drawing as right picture).

Sintered Metal Filter Advantage:

1: Uniform and high porosity -- the size and distribution of the filter are strictly controlled, resulting in the performance of the filter medium.

2: High strength media-Sintering technology enables the filter media to achieve tight binding at the molecular level and eliminates the common problems of other media, such as separation, fatigue and penetrability.

3: Cost reduction of spare parts -- unlike disposable filter elements and bags, the filter elements of this filter hardly need to be replaced.

4: Easy regeneration of filter element -- the filter can remove the particles easily by backblowing (gas) or backwashing (liquid) and other cleaning methods, and will not scratch or wear the filter element.Dirt can also be cleaned with water, steam, air, solvents, corrosive agents or acid, alkali and ultrasonic concentrations.

5: There is a wide variety of media - sintered metal filter elements are used in the filters, from standard 304L and 316L stainless steel to Monel, Inconel, Harborite and pure nickel and titanium.It can meet various acid, alkali, high temperature (≤900℃), high pressure occasions.

6. Solve environmental protection problems -- completely seal the space design, and realize DCS control system, which reduces the operation risk of workers and makes it safer and environmentally friendly.

Sintered Metal Filter Property:

Sintered Metal Filter Application:

1. Filtration and separation of noble metal catalysts in hydrogenation reactions of petrochemical and coal chemical industries;

2. Filtration of high-temperature gas and corrosive liquid in nuclear power plant, pharmaceutical plant and power plant;

3. Filtration of organic solvents and dyes in chemical industry;

4. High temperature fly ash filtration in coal gasification projects;

5. Filtering of beverages, beer, mineral water and sugar in the food and beverage industry;

6: Filtration of hydraulic oil and lubricating oil in mechanical industry;

7: Filtration and purification of polymer in liquid crystal, chemical fiber and thin films.

Sintered Metal Filter Introduce:

Sintered metal microporous filter is a new type of filtration and separation equipment composed of sintered metal filter elements, which is suitable for filtration in petrochemical, coal chemical, chemical, metallurgical, pharmaceutical, food, medical, nuclear, shipbuilding and other industries.

This kind of filter adopts sintered metal filter element as filter carrier, as a kind of metal porous element, it has higher strength, and is more resistant to high temperature, heat shock and corrosion. Higher filtration accuracy, greater flow, its filtration area up to 200 square meters, can withstand up to 0.8Mpa differential pressure. This filter can realize DCS control system, safety and environmental protection, strong online backwash ability, in the field of hydrogenation reaction, can save more precious metal catalyst for users.

The principle of this filter is pressure filtration. Due to the pressing and sintering of metal powder, the pores inside the filter core are criss-cross and evenly distributed, so that it has a deep filtering effect.

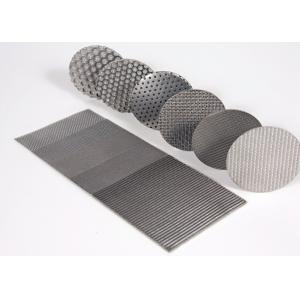

Sintered Metal Filter Pictures

The Product Packaging:

Company Honor display:

Anping County Jineng metal Wire Mesh Products Co., Ltd. was established in 2008. Our company is located in Anping County of Hebei Province. Anping County is China's wire mesh production base, which in known as "home of wire mesh". We have more than 50 employees, including more than 10 professional technical personnel and senior engineers. We are production-oriented enterprises which is specialized in environmental protection, water treatment, chemical and other filtration equipment and accessories. Meanwhile we are engaged in the intensive processing of wire mesh according to the advantages of Anping as China's wire mesh production base.

Our company has a scientific management system and passed the ISO9001 quality management system certification.Every production step has strict quality test. Our company has a complete set of testing equipment: material component testing, finished product testing, experimental results testing equipment.

Our company has cooperated with many colleges and universities to attract technical talents and management talents. We invested in the research and development of new products, and we got multiple patents.

Our products meet the requirements of foreign cooperative enterprises.Our annual sales of export to European and American countries, such as France, Spain, Germany, America, Canada, Australia, Japan and other countries, are growing at a rate of 35%. We look forward to the cooperation with enterprises from all over the world.
