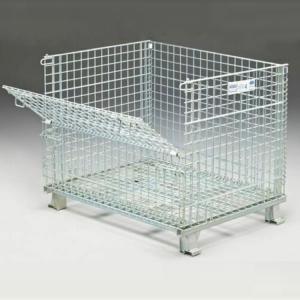

High Quality Steel Folding Metal Storage Wire Mesh Pallet Cage
Steel Folding Metal Storage Wire Mesh Pallet Cage Description
Metal storage cage is a very important logistics storage and
transportation of containers, and store items with fixed capacity,
stacked neatly and stored at a glance, easy to the inventory, at
the same time improve the effective utilization of warehouse
space.When not used, can foldable and stackable to save storage
space.
Storage cage commonly used three kinds: the first kind is storage
cage with wheels ,the second is storage cage with foot ,can
stackable, the third is the combination of the wheels and foot
Steel Folding Metal Storage Wire Mesh Pallet Cage Specification
| Type: | Wire Container | Scale: | Heavy Duty |
|---|---|---|---|
| Capacity: | 500-2000kg | Color: | According To Client Needs |
| Finish: | Zinc/powder Coating | Welding: | Weld For Automatic Welding |
| Material: | Steel | Use: | Metal Storage Cage |
| Type: | Folding | Certification: | ISO9001 |
Wire Diameter( mm) Wire Mesh(Grid)(mm) External Size(mm) The Height
of the foot(mm) Capacity(kg)
| Wire Diameter( mm) | Wire Mesh(Grid)(mm) | External Size(mm) | The Height of the foot(mm) | Capacity(kg) |
| 6.0 | 50*50 | 800*600*640 | 100 | 800 |
| 6.0 | 50*50 | 1000*800*840 | 100 | 1200 |
| 6.0 | 50*50 | 1200*1000*890 | 100 | 1500 |
| 6.4 | 50*50 | 1000*800*840 | 100 | 1500 |
| 6.4 | 50*50 | 1200*1000*890 | 100 | 2000 |
| 6.4 | 50*50 | 1000*800*500 | 100 | 1000 |
| 6.4 | 50*100 | 1000*80*840 | 100 | 1000 |
| 6.0 | 100*100 | 1200*1000*890 | 100 | 500 |
| 6.4 | 50*100 | 1200*1000*890 | 100 | 1000 |
| 4.8 | 50*50 | 1000*800*840 | 100 | 500 |
| 4.8 | 25*50 | 800*500*540 | 100 | 500 |
Steel Folding Metal Storage Wire Mesh Pallet Cage Features
1. Use bolt structure, easy to open the door and fetch goods;
2. Collapsible: Save space when not used;
3. Stackable: Can be stacked to 4 layers, achieve three-dimensional
storage;

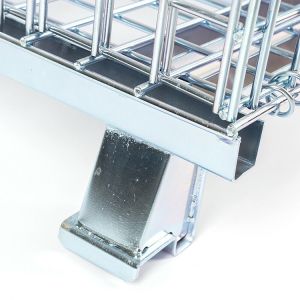

4. Made of strong steel, welding with U channel steel at the bottom
to guarantee the load capacity;
5. Surface treatment: Galvanization, powder coated or hot-dip
galvanization
